Acoustic Camera™

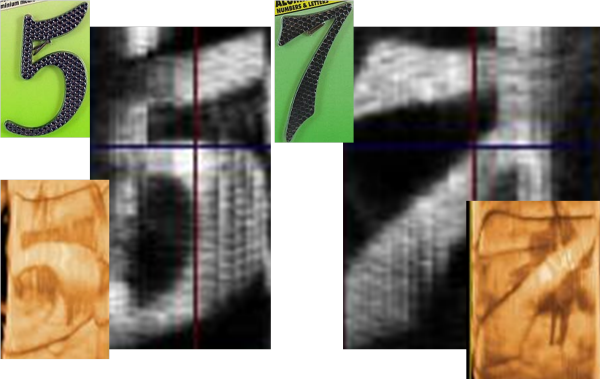

The Acoustic Camera program is an example of Sonasearch efforts to bring advanced imaging capabilities to the oil patch.  The examples, below indicate the excellent resolution available with this Sonasearch technology.  The pictures on a green background are common house aluminum house numbers (note the fluted surface features).  The grey scale output of the Acoustic Camera faithfully images the test targets - flutes and all.  Three dimensional (3D) imaging of the Acoustic Camera output is straightforward (sepia images). Suggested applications include an acoustic fishing tool to eliminate the problems associated with optical cameras, formation fracture surveys i.e. Barnett Shale, etc.
